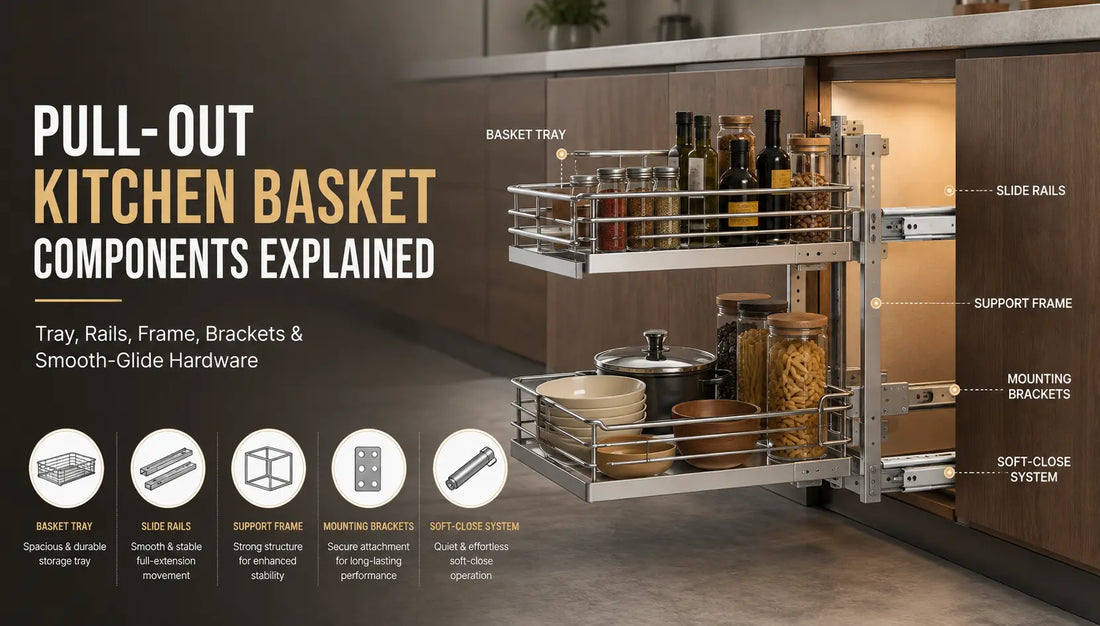

Pull-Out Kitchen Basket Components Explained

A pull-out kitchen basket system typically consists of a basket or tray, a supporting frame, runners, mounting hardware, and product-specific connection or adjustment parts. Depending on the design, it may also include soft-close hardware, door brackets, dividers, liners, anti-slip inserts, and removable trays.

Each component performs a separate function. The basket contains the stored items. The frame supports the basket. The runners control movement. Brackets and fasteners attach the system to the cabinet. Closing and organization components modify how the basket operates or how its contents are arranged.

Not every product uses visibly separate parts. A basket and frame may form one integrated assembly, while a damper or adjustment mechanism may be built into the runner system.

What Are the Main Components of a Pull-Out Kitchen Basket?

The main components are the storage basket, supporting structure, runner system, cabinet mountings, and the parts that connect or control the moving assembly.

A core function does not always require a separate visible part. For example, the supporting structure may be incorporated into the basket body, and soft-close hardware may be integrated into the runners.

Basket and Tray Components

The basket or tray is the storage component that directly contains the kitchen items.

Wire Baskets

Wire baskets use an open arrangement of metal rods or wires. The open structure provides visibility and allows air to circulate around stored items.

Wire spacing determines which objects the basket can support. Wide spacing may suit bottles or cookware but allow small packets or utensils to fall through.

Mesh and Perforated Baskets

Mesh and perforated baskets use smaller openings than open-wire designs. They contain small items more effectively while still providing some ventilation.

Their more enclosed construction can reduce side visibility compared with an open-wire basket.

Solid-Bottom and Solid-Sided Trays

A solid-bottom tray uses a continuous storage surface. Solid-sided versions also enclose part or all of the basket walls.

These structures contain crumbs, small objects, and minor spills more effectively than open wire. The trade-off is usually lower airflow and reduced side visibility.

Basket Guards and Side Rails

Raised sides, bottle guards, and retaining rails help prevent tall containers from tipping during movement. They improve item stability but do not increase the system’s manufacturer-rated load by themselves.

Supporting Frame Components

The supporting frame carries the basket, maintains its position, and transfers the stored load to the runners and cabinet mountings.

Base Frame

A base frame supports the basket from beneath. It may connect directly to bottom-mounted runners or form the lower section of a wider basket assembly.

Side Frame or Uprights

Side frames and uprights hold baskets at one or more levels. They are common in narrow bottle pull-outs and multi-tier organizers.

Full-Height Pantry Frame

A full-height pantry frame carries several baskets or trays inside a tall cabinet. Compatible designs may connect to a bottom runner, an upper guide, and the cabinet front.

Cross-Members and Basket Holders

Cross-members connect frame sections and maintain their spacing. Basket holders, hooks, or clips secure fixed or removable storage levels to the frame.

A thicker-looking frame does not automatically support more weight. Its performance also depends on its joints, basket holders, runners, fasteners, and cabinet support.

Runners, Slides, and Motion Components

Runners or slides guide the pull-out assembly along its designed path and support the moving load.

Fixed and Moving Runner Members

The cabinet member attaches to the cabinet or mounting bracket. The moving member connects to the basket or supporting frame.

Telescopic designs may include one or more intermediate members. These overlapping sections extend in sequence to increase the available travel.

Ball Bearings

Ball-bearing slides use small bearings between compatible runner members. The bearings roll as the members move, reducing direct sliding friction.

Ball bearings are common in some cabinet hardware, but they are not used in every pull-out basket.

Rollers and Wheels

Other runner systems use rollers, wheels, or roller carriages. These parts may use nylon or another manufacturer-specified material.

A smooth-running basket should not automatically be described as using ball bearings. The product specification should identify the actual motion system.

Full-Extension and Partial-Extension Runners

Full-extension runners provide access to essentially the complete usable basket depth. Partial-extension runners leave more of the moving assembly inside the cabinet.

Extension describes access distance. It does not define load capacity or closing behavior.

Stops and Retaining Features

Stops or retaining parts limit the runner’s intended travel and help keep its members connected during normal operation. Their location and design vary by product.

Mounting Brackets, Fasteners, and Cabinet Connections

Mounting brackets and fasteners connect the runner and frame assembly to the cabinet structure.

Side-Mount Brackets

Side-mount brackets connect runners or frames to cabinet side panels. The cabinet must provide the side clearance specified for the product.

Bottom-Mount Fittings

Bottom-mount fittings connect the system to the cabinet base or a lower support. Their performance depends on the runner rating, fasteners, frame, and cabinet-floor construction.

Rear and Front Brackets

Rear brackets may support runners in compatible face-frame or cabinet applications. Front brackets position hardware near the opening or connect other product-specific parts.

Brackets with similar shapes are not necessarily interchangeable. Hole patterns, dimensions, orientation, and load requirements can differ.

Screws, Bolts, and Clips

Fasteners secure the brackets and runners. Their length, diameter, head profile, material, and fixing location should follow the product instructions.

A replacement screw should not be selected only because it fits through the hole. An incorrect fastener can interfere with movement or provide inadequate holding strength.

Handles, Cabinet Fronts, and Door-Connection Parts

Handles and door-connection parts transfer the user’s pulling force to the moving basket assembly.

An independent handle may attach to an internal basket or frame positioned behind a separate hinged cabinet door.

A door-mounted system instead connects the cabinet front to the pull-out frame with door brackets. Pulling the front then moves the basket and door together.

Door-mounted products may include height, side, depth, or tilt adjustments. Larger fronts may also require compatible stabilizers. These parts help maintain alignment but do not replace the structural frame or required runner capacity.

Soft-Close, Self-Close, and Opening Components

Closing components control how the basket enters its final closed position.

Soft-Close Damper

A soft-close damper slows the last part of the closing movement. It reduces slamming and sudden impact but does not determine extension distance or load capacity.

Self-Closing Component

A self-closing component assists in pulling the assembly toward its closed position. Some systems combine this action with damping.

Catch, Trigger, or Activator

A compatible catch or activator engages the closing mechanism at a specified point in the travel. Terminology and construction vary between products.

Push-to-Open Hardware

Push-to-open hardware releases or initiates opening after pressure is applied to a compatible cabinet front. The mechanism must match the runner family, front configuration, and intended weight range.

Not all soft-close, self-close, or push-to-open systems use the same internal springs, dampers, or catches.

Dividers, Liners, Trays, and Organization Accessories

Organization accessories adapt the basket interior to the size, shape, and movement of stored items.

Dividers separate bottles, lids, dishes, or food containers. Bottle guards reduce lateral movement and help stabilize tall containers.

Anti-slip inserts reduce movement across a compatible tray surface. Liners support packets, utensils, and objects smaller than the basket’s wire spacing.

Removable drip trays collect water beneath compatible dish baskets. Removable bins allow groups of stored items to be lifted out separately.

Height-adjustable basket holders change the space between levels in compatible frames. Additional hooks may provide another mounting position when the frame and load specification allow it.

These accessories improve organization and item stability. They do not automatically increase structural load capacity.

How Do the Components Carry and Transfer Load?

Stored weight passes through the basket, supporting frame, runners, brackets, fasteners, and cabinet panels before reaching the cabinet structure.

The typical load path is:

Stored items → basket or tray → basket holder or frame → runner → mounting bracket and fastener → cabinet panel

Load capacity therefore belongs to the complete system. Strong basket wires cannot compensate for weak runners, loose basket holders, unsuitable brackets, or inadequate cabinet panels.

The runner rating alone also does not prove that every connected part supports the same load. Door-mounted systems must additionally move the weight of the cabinet front.

Placing most of the weight at the front or on one side can increase stress on extended hardware. Multi-tier systems should distribute weight according to the manufacturer’s instructions.

Soft-close dampers, dividers, and anti-slip inserts do not increase the system’s structural rating.

Which Components Determine Compatibility and Adjustment?

Compatibility depends on whether the basket, frame, runners, brackets, door connections, and adjustment ranges match the cabinet.

First compare the basket and frame dimensions with the cabinet’s internal width, usable depth, available height, and door clearance. Include hinges, face frames, pipes, and other obstructions.

Next confirm the mounting configuration. A product may require side panels, a suitable cabinet base, a top guide, or a particular face-frame bracket.

Cabinet-front connections can require enough adjustment to align the door with the surrounding cabinet. Depending on the system, adjustment may include height, side-to-side position, depth, tilt, or closing speed.

Components sold separately must belong to compatible product families. A runner may require a specific locking device, basket frame, or soft-close unit. Door brackets can also use model-specific hole patterns and adjustment ranges.

Check manufacturer part numbers, technical drawings, and supplied-component lists before combining or replacing parts.

Which Components Wear Out or Need Replacement?

Runners, rollers, dampers, brackets, fasteners, clips, and removable accessories may require adjustment or replacement after damage or prolonged use.

One symptom does not identify one guaranteed cause. Inspect the complete load and movement path before replacing a component.

Identify the product model and, where applicable, left- or right-hand orientation. Match the runner length, extension, mounting pattern, and load rating.

Do not replace structural fasteners or brackets with visually similar parts without checking their specifications. Follow product-specific maintenance instructions before applying oil or another lubricant.

Frequently Asked Questions

What Are the Essential Components of a Pull-Out Kitchen Basket?

The essential functions are provided by a basket or tray, structural support, runners, and mounting hardware. Some products integrate the basket and frame into one assembly.

Is the Basket Frame the Same as the Basket?

Not always. The basket contains the stored items, while the frame connects, supports, and positions it. Some products combine both functions in one structure.

What Are Pull-Out Basket Runners Called?

They may be called runners, slides, drawer slides, telescopic slides, or telescopic rails. Terminology varies by manufacturer and market.

Do All Pull-Out Baskets Use Ball-Bearing Slides?

No. Some use ball-bearing slides, while others use rollers, wheels, roller carriages, or different guiding systems.

Is Soft-Close Part of the Runner?

Soft-close may be integrated into the runner or supplied as a compatible module. The configuration depends on the product family.

Which Component Determines Load Capacity?

No single component determines it. The basket, frame, runners, brackets, fasteners, and cabinet structure form the complete load-bearing system.

Can Pull-Out Basket Components Be Replaced Separately?

Some products offer separate runners, brackets, trays, dampers, or basket holders. Replacement compatibility usually depends on the model or product family.

What Components Are Needed for a Door-Mounted Basket?

A door-mounted system typically requires a compatible frame, runners, door brackets, fasteners, and adjustment hardware. The exact component list should come from the manufacturer.
