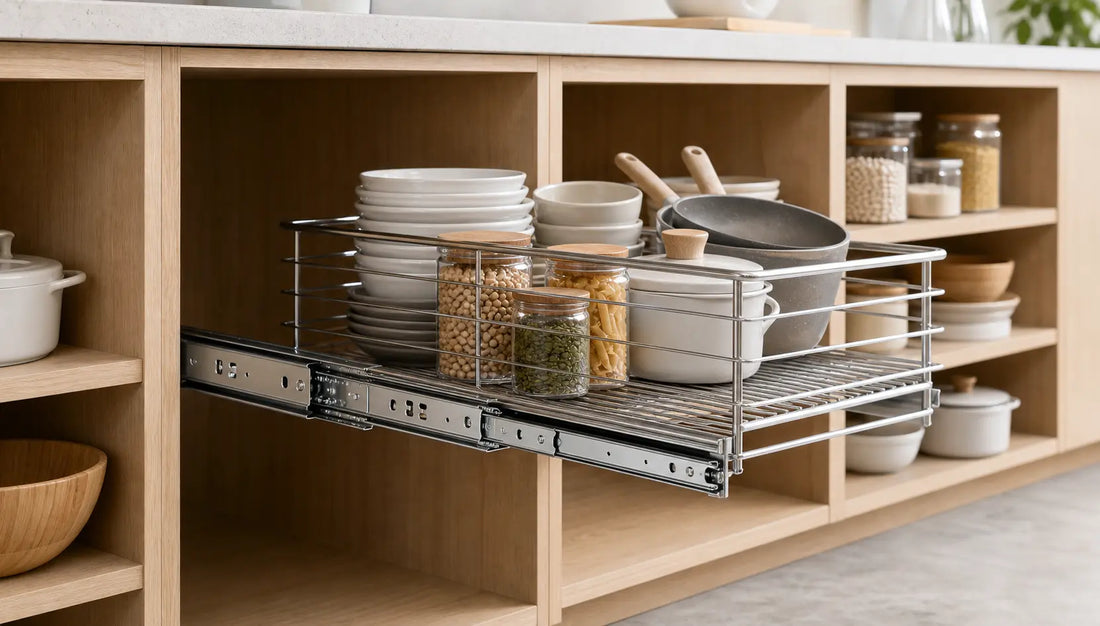

How Does a Pull-Out Kitchen Basket Work? Mechanism Explained

A pull-out kitchen basket works by moving a basket and its supporting frame along cabinet-mounted runners when the user pulls a handle or attached cabinet front. The runners guide the basket outward, support the stored load, and restrict movement to a controlled path.

As the runners extend, the basket moves from its closed position to an accessible position near or beyond the cabinet opening. Pushing it back reverses the movement. If the product includes soft-close hardware, a damping mechanism controls the final closing stage.

The system’s performance depends on the basket frame, runners, mounting hardware, cabinet structure, installation alignment, and stored load.

What Parts Make a Pull-Out Kitchen Basket Work?

A pull-out kitchen basket operates through the interaction of the basket, supporting frame, runners, mounting hardware, handle or cabinet front, and optional closing mechanism.

Basket or Storage Tray

The basket holds bottles, cookware, dishes, groceries, or other kitchen items. It may use wire, mesh, perforated metal, solid panels, or a combination of materials.

Supporting Frame

The frame connects the basket to the movement system, maintains its position, and transfers the stored load toward the runners and mounting points.

Runners or Slides

The runners guide extension and retraction. Depending on the product, they may use ball bearings, rollers, wheels, or another manufacturer-specific design.

Mounting Hardware

Brackets, screws, clips, and other fittings connect the runners and frame to the cabinet sides, base, door, or supporting structure.

Handle or Cabinet Front

The handle or cabinet front provides the point where the user applies force. A door-mounted front moves with the basket, while an internal pull-out operates separately behind a hinged door.

How Does the Basket Move from Closed to Open?

The basket moves from closed to open when the user’s pulling force is transferred through the handle or cabinet front to the supporting frame and runners.

Step 1: The User Applies Pulling Force

The user pulls an independent handle or a cabinet front connected to the frame. The force acts along the runner’s intended movement path.

Step 2: The Runners Begin to Extend

The moving runner sections travel relative to the parts fixed inside the cabinet. Bearings, rollers, or other guiding components reduce resistance and help control the direction of movement.

Step 3: The Frame Carries the Basket Outward

The extending runners carry the frame, basket, and stored items toward the cabinet opening. Left and right support points should move together to keep the basket stable.

Step 4: The Basket Reaches Its Access Position

The runner design determines the final access position. Partial-extension runners leave more of the usable basket depth inside the cabinet.

Full-extension runners provide access to essentially the complete usable depth. This does not necessarily mean that every part of the basket moves completely beyond the cabinet face.

Step 5: The Basket Returns to the Cabinet

Pushing the basket reverses the movement. The runner sections retract until the basket reaches its closed position.

Standard systems rely on the user to control the closing speed. Soft-close systems control part of the final movement.

How Do the Slides Guide and Support the Basket?

The slides guide the basket by restricting its movement to a designed path while supporting the moving assembly between the basket frame and cabinet.

Telescopic Movement

Many runners use overlapping members that extend in sequence. This telescopic arrangement allows the basket to travel farther than a single fixed component.

The number and length of the members vary, so the specified extension type is more useful than judging a runner by appearance.

Bearings, Rollers, and Friction

Ball-bearing slides use bearings between runner sections to reduce friction. Other systems may use cylindrical nylon rollers, wheels, or different guiding components.

Smooth operation therefore does not prove that a product uses ball bearings. It also depends on load, alignment, cleanliness, and component condition.

Side-to-Side Guidance

The supporting points must remain correctly spaced and parallel. If the spacing changes along the cabinet depth, the frame may tighten, twist, or bind during movement.

Travel Limits

A runner may contain stops or retaining features that limit travel to the designed range. Their construction and operation depend on the specific product.

How Does a Soft-Close Pull-Out Basket Work?

A soft-close pull-out basket uses a damping mechanism to slow the final part of the closing movement and reduce impact.

The user starts closing the basket normally. As it approaches the closed position, the soft-close mechanism engages or assists with the remaining movement. Some systems combine damping with a self-closing function.

The internal mechanism can use different combinations of dampers, springs, catches, or integrated components. Its exact design varies by manufacturer.

Soft-close does not define extension distance or structural capacity. A basket can be full-extension without soft-close, and a soft-close basket does not automatically support a heavier load.

How Do Different Mounting Configurations Operate?

Mounting configuration determines where the runners support the basket and whether the cabinet front moves with the pull-out frame.

Side-Mounted Systems

Side-mounted runners connect to the cabinet side panels or side brackets. They require the specified side clearance and parallel runner positions.

Bottom-Mounted Systems

Bottom-mounted runners support the basket or frame from beneath. Their suitability for heavy storage still depends on the rated load, frame, fasteners, and cabinet base.

Door-Mounted Systems

A door-mounted system connects the cabinet front to the pull-out frame. Pulling the front extends the basket in one operation, making door alignment part of the system adjustment.

Internal Pull-Out Systems

An internal pull-out remains behind a separate hinged door. The door must open far enough for the basket to extend without touching the hinges, frame, or cabinet front.

Do All Pull-Out Basket Systems Move in the Same Way?

Pull-out basket systems do not all move in the same way; their motion may be linear, full-height, linked, swinging, or rotational.

Standard Linear Pull-Out

A standard base-cabinet basket moves forward and backward along a straight runner path. This design is common in general-storage, bottle, dish, and cookware baskets.

Tall Pantry Pull-Out

A tall pantry pull-out moves a vertical frame carrying several storage levels. Some systems use a bottom runner and an upper guide to control the frame.

Because the entire assembly moves together, cabinet support and weight distribution are important.

Magic Corner-Type System

A linked corner system coordinates the movement of front and rear storage sections. The front section moves outward while the rear section travels toward the cabinet opening.

LeMans-Style Swing-Out System

A swing-out system moves shaped trays around a pivot. The trays travel beyond the opening through a curved rather than purely linear path.

Carousel System

A carousel rotates shelves around a central axis. It is a related corner-storage mechanism, not a conventional linear pull-out basket.

How Does Load Affect Pull-Out Basket Operation?

Stored weight affects operation because the basket, frame, runners, brackets, fasteners, and cabinet panels must support the load together.

Use the manufacturer-rated load rather than estimating capacity from basket width, wire thickness, or a “heavy-duty” product name.

Extending the basket moves the load farther from the cabinet’s mounting points. Concentrating heavy items at the front can increase leverage on the runners and brackets. Uneven side loading can also make one runner work harder than the other.

Distribute stored weight according to the product instructions and keep the total load within the specified limit. Soft-close operation does not increase the structural load rating.

Why Does Installation Alignment Affect Movement?

Installation alignment affects movement because the runners must remain level, parallel, and correctly spaced throughout the basket’s travel.

If one runner sits higher than the other, the frame may tilt or twist. If runner spacing changes from the front to the rear, the basket may become stiff or bind.

A cabinet that is not square can also alter the required clearance. Door-mounted systems need additional adjustment because the cabinet front must remain aligned while moving with the frame.

Hinges, face frames, pipes, fasteners, and internal supports must remain outside the movement path. After installation, test the basket through its complete travel with a load within the manufacturer’s stated limit.

What Keeps a Pull-Out Basket Working Smoothly?

A pull-out basket continues to move smoothly when its runners remain clean, correctly aligned, securely mounted, and loaded within the manufacturer’s limit.

Remove crumbs, packaging, cloths, and other objects from the movement path. Inspect accessible brackets and fasteners because loose mounting points may cause wobble, noise, or cabinet-front misalignment.

Do not automatically add oil or grease. Some runner systems require no additional lubrication, while specific products may prohibit it. Follow the manufacturer’s maintenance instructions.

These symptoms can have several causes. Inspect the complete system before replacing a runner or changing its adjustment.

How Is a Pull-Out Basket Different from a Drawer or Fixed Shelf?

A pull-out basket, drawer, and fixed shelf differ mainly in construction, containment, and how stored items move toward the user.

Pull-out baskets and drawers may use similar runner principles. Their main difference is usually the construction of the storage container.

A pull-out shelf uses a solid platform but still operates on runners. Because product terminology varies, compare the actual construction, extension, mounting system, and load rating rather than relying only on the product name.

Frequently Asked Questions

What Makes a Kitchen Basket Pull Out?

A runner system makes the basket pull out. The user applies force through a handle or cabinet front, and the runners guide the attached frame and basket toward the opening.

Do Pull-Out Baskets Use Ball-Bearing Slides?

Some pull-out baskets use ball-bearing slides. Others use rollers, wheels, or different runner designs. Check the product specification rather than assuming all systems use ball bearings.

Does the Whole Basket Come Out of the Cabinet?

It depends on the extension type. Full-extension runners provide access to essentially the complete usable depth, while partial-extension runners leave more of the basket inside the cabinet.

How Does a Soft-Close Basket Close?

A soft-close basket uses damping to slow the final closing movement. Some systems also assist in pulling the basket into its closed position.

Why Does a Pull-Out Basket Wobble?

Possible causes include loose hardware, uneven loading, frame movement, excessive clearance, runner wear, or installation misalignment.

Can a Pull-Out Basket Carry Heavy Pots?

It can carry heavy pots only when the basket frame, runners, brackets, fasteners, cabinet structure, and manufacturer-rated load support the intended weight.

Should Pull-Out Basket Runners Be Lubricated?

Lubricate runners only when the manufacturer recommends it and identifies a suitable product. Do not assume every runner needs oil or grease.

Can a Pull-Out Basket Be Installed in an Existing Cabinet?

Many models can be retrofitted when the internal dimensions, cabinet structure, door clearance, hinges, and mounting points meet the product requirements.
