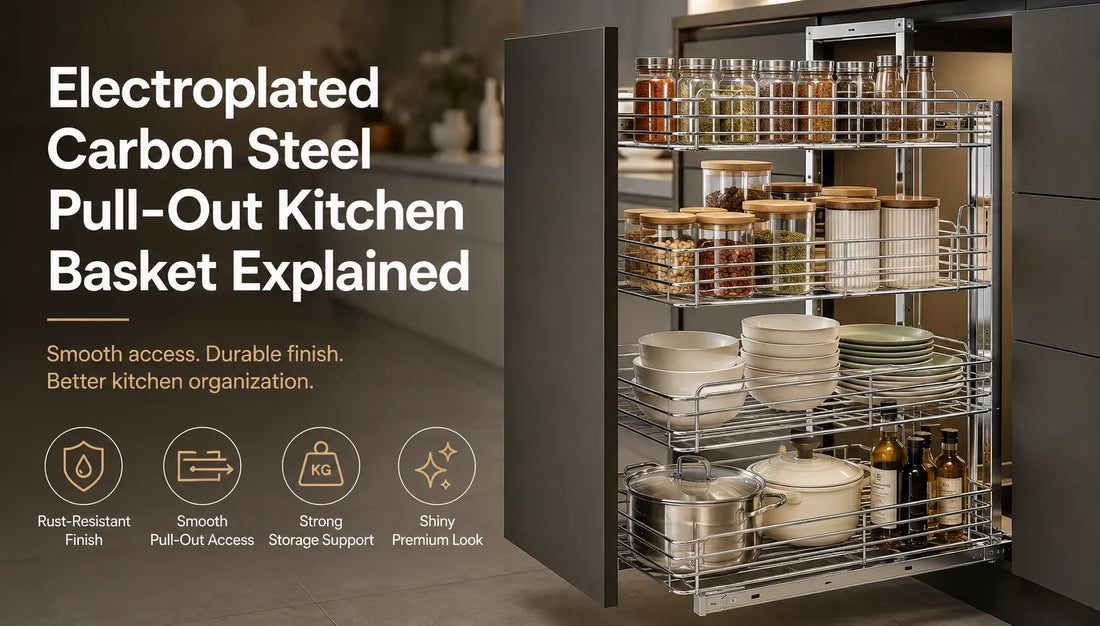

Electroplated Carbon Steel Pull-Out Kitchen Basket Explained

An electroplated carbon steel pull-out kitchen basket is a sliding cabinet organizer with a carbon-steel frame and a thin metallic surface coating. The steel supplies the structure; the electroplated finish improves appearance and helps isolate the steel from moisture; and the runners bring stored items out of a deep cabinet. Its real quality depends on the complete system—not simply the word “electroplated.” Plating type and workmanship, wire and weld construction, slide rating, cabinet fit, installation, exposure, and maintenance all affect performance.

What Is an Electroplated Carbon Steel Pull-Out Kitchen Basket?

It is a cabinet-mounted storage assembly designed to move outward on runners so users can see and reach items that would otherwise sit at the back of a cabinet. Most versions combine an open wire basket or welded frame, a pair of slides, brackets, fasteners, and sometimes a door-mounting frame.

The product can be made as a single-tier basket, a multi-tier organizer, a narrow bottle pull-out, or a larger unit for cookware and pantry goods. Open wire construction gives good visibility and airflow, although small objects may need a liner or container.

“Electroplated carbon steel” identifies the construction and surface treatment. It does not, by itself, confirm the basket’s dimensions, load rating, extension, closing action, or suitability for a particular cabinet.

What Does “Electroplated Carbon Steel” Mean?

Carbon steel is the substrate: the material that forms the wires, frame, brackets, or other structural parts. Manufacturers use it because it can be formed and welded into rigid, economical basket assemblies. Its exact strength and stiffness still depend on the steel grade, wire diameter, component geometry, weld quality, and reinforcement.

Electroplating is the surface-finishing process. An electric current drives metal ions from a plating solution onto the conductive workpiece, which normally acts as the cathode. The deposited metal changes the surface rather than converting the underlying carbon steel into stainless steel.

This distinction matters. A plated basket can look like stainless steel because both may have a bright metallic finish, but they protect themselves differently. Plated carbon steel depends substantially on the continuity and quality of an added coating. Stainless steel obtains corrosion resistance from chromium in the alloy and its naturally forming passive surface film.

How Does Electroplating Create the Surface Finish?

Electroplating creates the finish by cleaning and activating the fabricated steel before using direct current to deposit a metallic layer onto it. Preparation is critical because oil, polishing compounds, welding residue, scale, and oxides can prevent the coating from adhering correctly.

The fabricated parts normally pass through cleaning, rinsing, acid treatment or pickling, and activation stages appropriate to the production system. During plating, the prepared basket is electrically connected and immersed in an electrolyte containing the metal ions to be deposited. Direct current causes those ions to reduce onto the basket surface.

Current density, bath chemistry, temperature, time, part geometry, and rack contact can influence deposit thickness, appearance, adhesion, and uniformity. Rinsing and a suitable post-treatment may follow.

Complex wire geometry makes process control important. Crossings, recesses, welds, and edges may receive different current densities and coating thicknesses. A bright surface therefore does not, on its own, prove uniform protection. A useful specification identifies the deposited metal or layer system, coating requirement, appearance standard, and relevant corrosion test instead of stating only “electroplated.”

Which Electroplated Finish Systems Are Common?

Nickel, nickel-chromium, and zinc-based systems are possible, but the word “electroplated” does not reveal which one was used.

Nickel can provide a bright or satin appearance, corrosion and wear resistance, and a suitable undercoat for another deposited layer. In decorative nickel-chromium systems, nickel commonly provides much of the leveling and protective function, while a relatively thin chromium top layer changes the appearance and surface behavior. Some specifications may include additional intermediate layers, so buyers should not assume a universal sequence.

Electroplated zinc is primarily selected to protect steel. It acts as a barrier and can also provide sacrificial protection to small exposed areas while sufficient surrounding zinc remains. Zinc finishes may receive passivation or another post-treatment that affects their color and corrosion performance.

Terms such as “chrome finish,” “bright chrome,” or “satin nickel” can describe appearance more clearly than construction. Confirm the actual coating system when corrosion resistance, color consistency, chemical exposure, or long-term finish quality is important.

Before purchasing, request a technical sheet that names both the substrate and finish. A phrase such as “chrome color” may describe appearance without defining the deposited metal. Likewise, “rust resistant” is not a test method. Better evidence includes the coating specification, preparation requirements, acceptance criteria, and test report for the finished assembly. Two visually similar baskets can have different pretreatment, coating thicknesses, rails, weld construction, and quality-control limits.

How Does the Pull-Out Mechanism Improve Access?

The pull-out mechanism converts cabinet depth into reachable storage. Rails constrain the basket to a controlled linear path, while rolling elements in ball-bearing slides reduce sliding friction. When the assembly is extended, items at the rear move toward the cabinet opening instead of requiring the user to reach into a dark, crowded space.

Extension and closing features are separate specifications. Full-extension runners expose more of the basket than partial-extension runners. Soft-close hardware controls the final part of closing, but a full-extension basket is not automatically soft-close. Likewise, a smooth unloaded demonstration does not prove adequate performance when the basket is filled.

Runner spacing, parallel alignment, mounting rigidity, lubrication, load distribution, and debris all affect movement. The basket, slides, and cabinet must operate as one system; premium plating cannot compensate for weak runners or inaccurate installation.

Can an Electroplated Carbon Steel Basket Rust?

Yes. Electroplating reduces corrosion risk, but it does not make carbon steel incapable of rusting. Protection depends on the coating material, thickness, adhesion, porosity, coverage, post-treatment, and condition in service.

The common failure chain is straightforward: abrasion, impact, a pore, or a poorly covered edge exposes the substrate; moisture and oxygen reach the carbon steel; and localized red rust may develop. Welds and wire intersections deserve attention because their geometry can make pretreatment and uniform deposition more difficult. Trapped water, salt, acidic or alkaline cleaners, and repeated scratching can increase the challenge.

A small scratch does not produce the same result in every plating system. Zinc may protect nearby exposed steel sacrificially, whereas a more noble decorative coating mainly functions as a barrier and may allow attack at a discontinuity. The size of the damaged area and the environment also matter.

When comparing corrosion claims, ask for the coating specification and test conditions. ASTM B117 defines a controlled salt-fog environment, but the standard does not assign a universal exposure duration or make standalone salt-spray hours a direct prediction of service life.

How Does It Compare With Powder-Coated Steel, Stainless Steel, and Aluminum?

Electroplated carbon steel is a sensible choice when a rigid basket, metallic appearance, and competitive manufacturing cost are priorities, but it is not the best material in every environment.

Electroplated carbon steel uses a steel substrate plus a deposited metal finish. It can provide an attractive, thin metallic surface, but corrosion resistance depends heavily on coating quality and damage control.

Powder-coated carbon steel also retains a carbon-steel substrate, but it uses a cured polymer film rather than an electroplated metal layer. Powder coating offers broad color and texture choices and a durable barrier. Chips, incomplete coverage, or deep scratches can still expose the steel beneath.

Stainless steel contains enough chromium to form a naturally regenerating passive oxide film. It does not rely on a decorative plating layer for its fundamental corrosion resistance, although grade, fabrication quality, contaminants, chlorides, and service conditions still affect performance. It is often attractive for wetter or more demanding locations, usually at a different cost position.

Aluminum is lighter and naturally forms an oxide film, but alloy, section design, finish, joint construction, and slide selection determine the performance of an aluminum basket. Low weight alone does not establish load capacity.

Compare complete products using the same attributes: verified dimensions, system load rating, slide type, corrosion specification, finish repairability, cleaning requirements, warranty, appearance, and price. Material names alone cannot rank two different assemblies reliably.

What Determines Load Capacity and Structural Durability?

Load capacity is determined by the basket-and-runner assembly, not by carbon steel alone. Important factors include wire diameter, frame geometry, weld location and consistency, number of tiers, basket width, slide model and length, bracket stiffness, fastener engagement, cabinet strength, mounting orientation, and load distribution.

The manufacturer’s dynamic load rating is the most useful starting point when it is tied to a defined product and installation. Slide ratings may change with length or mounting orientation, and a rating can include the moving assembly as well as its contents. Static strength is not the same as repeated-cycle performance.

Store heavier items low and distribute them evenly rather than concentrating weight at the front edge. Do not infer capacity from how thick or shiny the basket looks. For cookware, appliances, or bulk pantry loads, verify the finished system’s rated load and installation requirements in the technical sheet.

How Do You Choose the Right Size and Installation Method?

Choose the basket from usable internal cabinet measurements, not the cabinet’s nominal label. Measure the clear opening width, internal depth, and available height. Then account for hinges, plumbing, shelves, face frames, door swing, brackets, and the side or bottom space required by the specified runners.

Compare those measurements with the manufacturer’s minimum opening and product dimensions. Basket width is not necessarily the same as the required cabinet opening because slides and mounting hardware need clearance. Face-frame and frameless cabinets may also require different dimensions or brackets.

Installation normally involves positioning the runners, marking mounting points, drilling suitable pilot holes where instructed, fastening the hardware, attaching the basket or moving frame, and checking level and parallelism. Cycle the empty unit before loading it, then confirm that the door, hinges, and adjacent hardware remain clear throughout its travel.

A retrofit also depends on the cabinet structure. Thin, damaged, or poorly positioned panels may not provide an adequate mounting surface. Follow the product instructions because fastener type, bracket position, tolerances, and adjustment procedures vary by model.

Where Should You Use an Electroplated Pull-Out Basket?

Electroplated baskets work well in compatible base cabinets, pantry units, bottle cabinets, and general dry-storage locations where users want visibility and easier access. The right configuration depends on the contents: narrow baskets organize bottles or spices, larger baskets suit pans and containers, and multi-tier systems separate smaller goods.

Use more caution beneath a sink or beside frequent water exposure. Plumbing reduces clearance, leaks can keep the finish wet, and cleaning chemicals may attack some surfaces. An under-sink installation should be explicitly compatible with the available space and expected environment. A removable liner or drip tray can simplify cleaning, but it must not trap moisture against damaged plating.

How Do You Clean and Maintain the Plated Surface?

Clean the basket with a soft cloth or non-abrasive sponge and a mild cleaner permitted by the manufacturer. Remove spills and salty residues promptly, rinse when appropriate, and dry the surface rather than leaving water in wire intersections or around welds.

Avoid steel wool, harsh abrasives, and unapproved acidic or alkaline chemicals that can scratch or chemically attack the finish. Keep runner tracks free of crumbs and sticky residue, but do not wash away factory lubricant or add incompatible lubricants.

Periodically check fasteners, alignment, unusual noise, coating blisters, peeling, and rust spots. If the coating is damaged, follow the supplier’s repair or replacement guidance instead of hiding active corrosion beneath an unsuitable touch-up.

Frequently Asked Questions

Is chrome-plated carbon steel the same as stainless steel?

No. One is coated carbon steel; the other is a chromium-containing alloy with a passive surface film.

Does full extension mean soft-close?

No. Extension and closing control are separate runner features.

How long will the basket last?

There is no universal lifespan. The coating system, manufacturing quality, load, environment, installation, use cycles, and maintenance all matter.

Can it be installed in an existing cabinet?

Often yes, provided the internal dimensions, clearances, mounting surfaces, and door arrangement meet the specific product requirements.
